Y2160 Model series vibrating screen sand making screening beneficiation belt conveyor ore crusher
1, Description

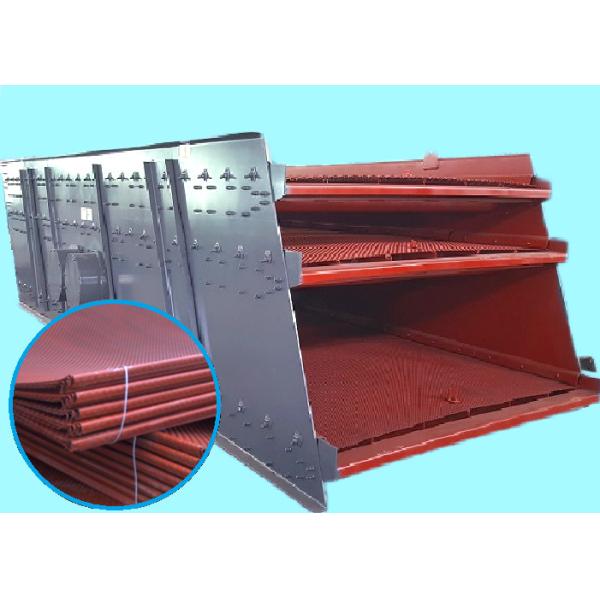

The circular vibrating screen is manufactured with a solid structure and is designed with an inclination of 15-20 degrees. It is especially suitable for screening rough stones or ore.
This machine can adjust the weight of the eccentric block to meet its needs. This model has a 15-20 degree inclination and the action of gravity, so compared with a horizontal vibrating screen, it requires less driving force, but it can produce a powerful screening effect.
Granite, basalt, diabase, shale, quartzite, river pebble, limestone, iron ore, coal gangue, non-ferrous metal ore, cobblestone, etc.
Suitable for screening sand and gravel in quarries, and also for product classification in coal preparation, mining, mineral processing, building materials, electric power and chemical industries.
2, Technical Parameters
Model | Layers of screen | Mesh size (mm) | Maximum feedsize (mm) | Processing power (t/h) | Double amplitude (mm) | Power (kW) | Vibration frequency (r/min) | Screen surface specifications (mm) | Dimensions(mm) |
2Y-1237 | 2 | 3-50 | 200 | 7.5-80 | 8 | 4-15 | 970 | 1200×3700 | 4010×2250×2660 |
3Y-1237 | 3 | 3-50 | 200 | 7.5-80 | 8 | 4-15 | 970 | 1200×3700 | 4010×2250×3140 |
2Y-1548 | 2 | 5-50 | 400 | 50-208 | 8 | 4-15 | 970 | 1500×4800 | 5120×2590×3060 |
3Y-1548 | 3 | 5-50 | 400 | 50-250 | 8 | 4-15 | 970 | 1500×4800 | 5120×2590×3540 |
2Y-1848 | 2 | 5-80 | 400 | 50-260 | 8 | 4-18.5 | 970 | 1800×4800 | 5120×2950×3060 |
3Y-1848 | 3 | 5-80 | 400 | 50-300 | 8 | 4-18.5 | 970 | 1800×4800 | 5120×2950×3540 |
2Y-1860 | 2 | 5-80 | 400 | 50-300 | 8 | 4-18.5 | 970 | 1800×6000 | 6260×2950×3480 |
3Y-1860 | 3 | 5-80 | 400 | 50-350 | 8 | 4-22 | 970 | 1800×6000 | 6260×2990×3960 |
2Y-2160 | 2 | 5-150 | 400 | 100-500 | 6-8 | 4-22 | 730 | 2100×6000 | 6270×3410×3670 |
3Y-2160 | 3 | 5-100 | 400 | 100-500 | 6-8 | 4-30 | 730 | 2100×6000 | 6270×3470×4100 |
2Y-2460 | 2 | 5-150 | 400 | 150-700 | 6-8 | 4-37 | 730 | 2400×6000 | 6270×3770×3610 |
3Y-2460 | 3 | 5-150 | 400 | 150-700 | 6-8 | 4-37 | 730 | 2400×6000 | 6270×3790×4100 |
3, Product advantages
1. Grooved rivet joints, durable,smooth operation
2. This series of vibrating screens are circular vibrating screens, the amplitude is strong and weak can be adjusted ,the screening is clear, The specifications of each file are clearly screened and the screening efficiency is high, which is suitable for mining and sandstone industries.
3. The screen beam and the screen box adopt high-strength bolts, with simple structure and convenient maintenance. Advanced structure, using block eccentricity as excitation force, strong excitation force, low power consumption and low noise.
4. The vibrating screen machine is mainly composed of a screen box, a screen mesh, a vibrator, a vibration damping spring device, and a chassis. A cylindrical eccentric shaft vibration exciter and a partial block are used to adjust the amplitude. The vibrator is installed on the side plate of the screen box and is driven by a motor to rotate through a V-belt to generate centrifugal inertia force to force the screen box to vibrate.
5. High frequency, large dip Angle , high screening efficiency and large capacity. The vibrator adopts large clearance bearing, thin oil lubrication, low noise and long life. The parts are versatile and easy to maintain.
4, Working principle
The vibrator is installed on the side plate of the screen box,when the circular vibrating screen works,the motor drives the eccentric block of the excite to rotate at a high speed though a triangular belt,which generates a great centrifugal inertia force and stimulates the circular motion of the screen box with certain amplitude.the material on the inclined screen surface is continuously thrown by the material meets the screen surface,in the process,the particles smaller than the sieve hole are screened through,thus realizing classification.
5, Factory manufacturing and scene
